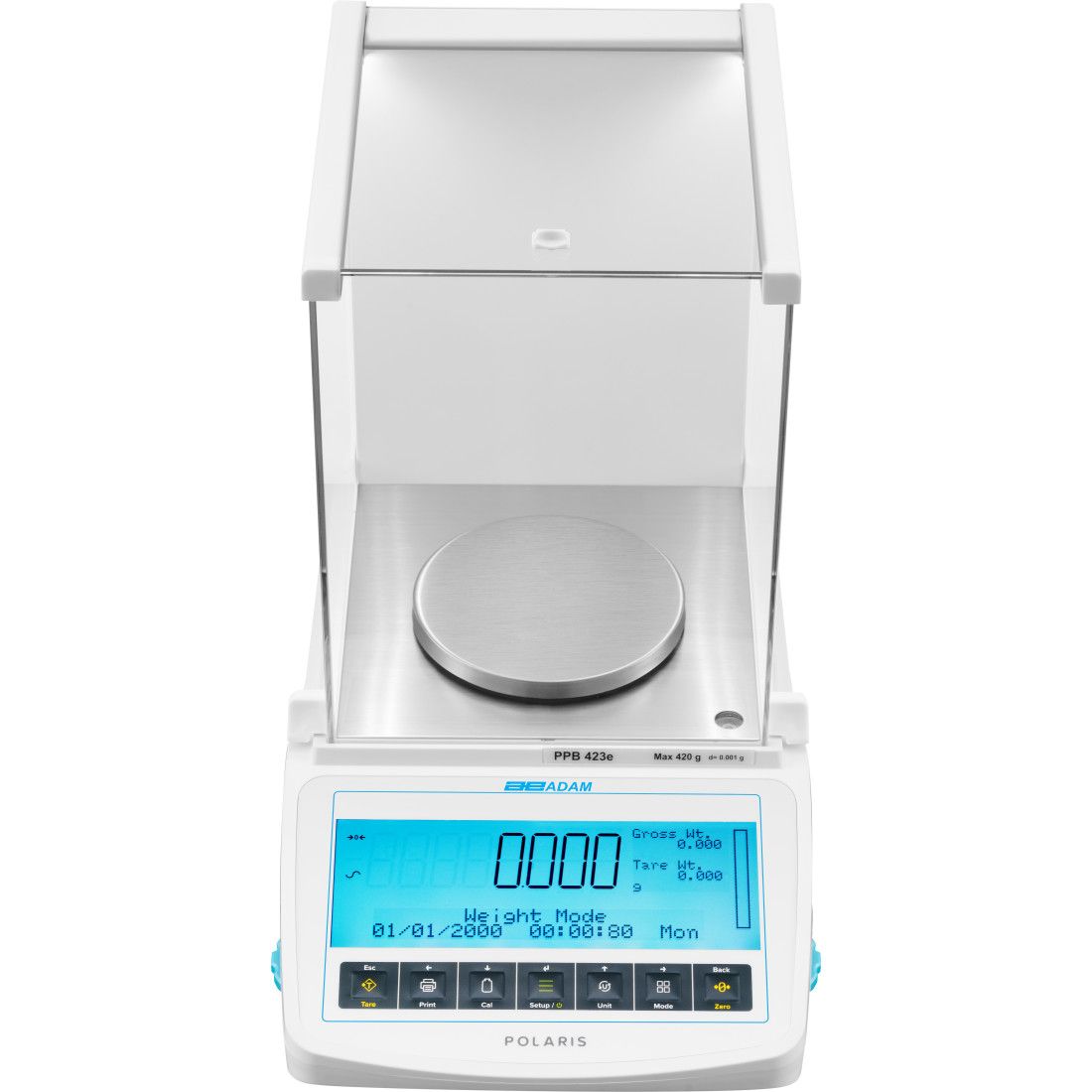

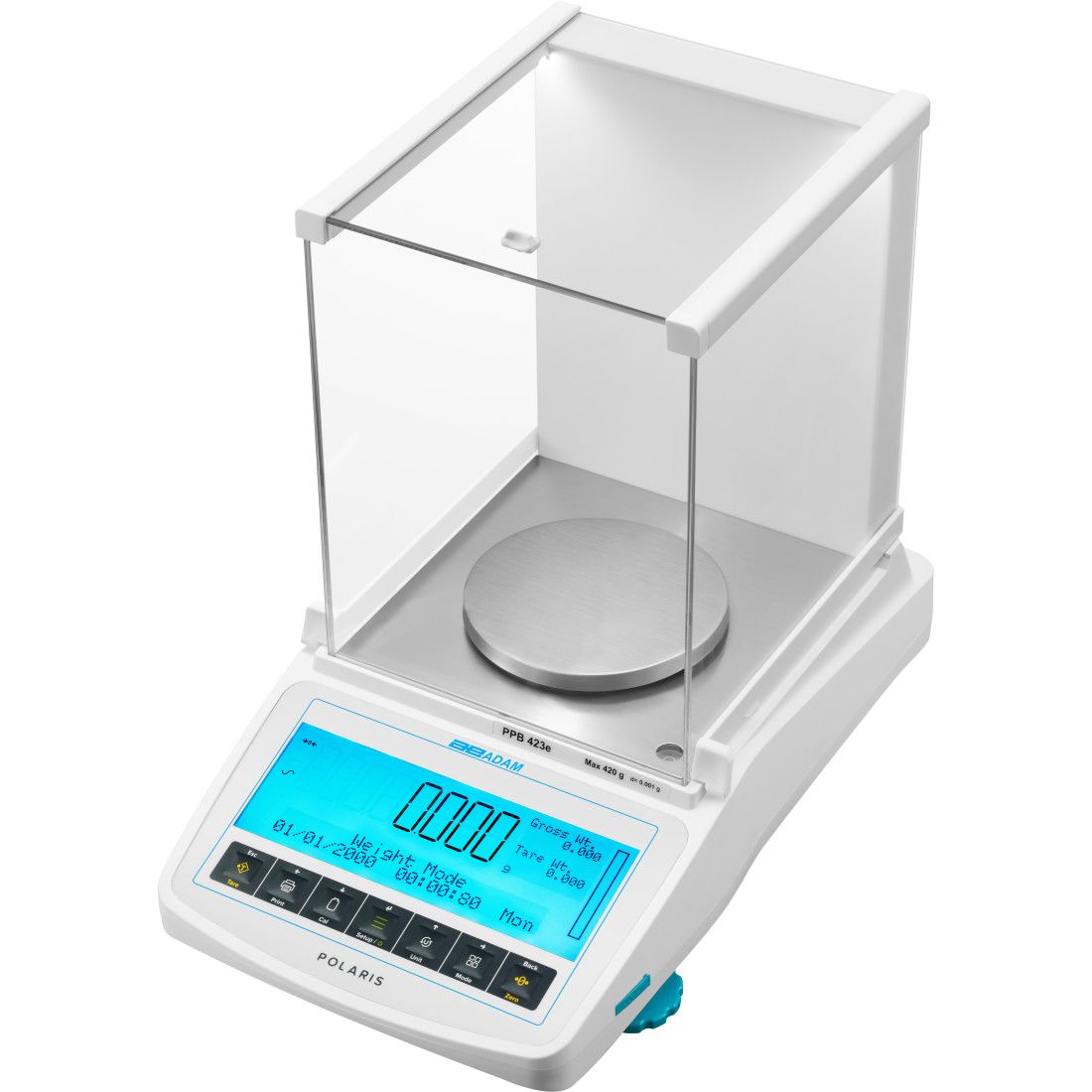

Polaris Precision Balances-PPB 623e
Precision results, advanced connectivity options and an expansive colour-changing backlit display allow Polaris to provide an intuitive weighing experience for demanding labs.
Applications
Features
Polaris precision balances ensure a precise, intuitive weighing experience with a generous display, fast weighing results and a colour-changing backlight for checkweighing to show if samples are within user-specified limits. The balance range provides remarkably easy, GLP-compliant recordkeeping with advanced communications to peripheral devices via standard Bluetooth, RJ45 ethernet, RS-232 and USB interfaces.
Features and Benefits
- Intuitive, easy-to-use display showing instructions, results and application status at a glance
- Store 200,000+ results in the internal memory for full traceability
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Large, grade 304 stainless steel pan allows easy cleaning
- Security slot for optional lock and cable to help prevent theft
- Colour-changing backlight in checkweighing mode to show if under, over or within acceptable limits
- Connect seamlessly to PCs, printers, or LIMS via Bluetooth®, RJ45 Ethernet, RS-232 and USB interfaces
- Bright, LED-lit weighing chamber for clear visibility of samples
- High-resolution graphic display is amply sized for clear visibility
- Parts counting with preset sample sizes
- Capacity tracker built into display for easily monitoring possible overloads
- Up to 200 ingredients can be stored in the internal memory (10 formulations each holding 20 ingredients)
- Multilingual display allows use in many different countries
- Selectable digital filtering helps minimise effects of vibration and disturbances
- Removable draft shield for easy cleaning and transportation offsite
- Multi-level security permissions: 1 administrator plus up to 99 operators
- Hook provided for below-balance weighing
- In-use cover provided to protect the balance from dust, dirt and moisture
- Solid, durable ABS housing to withstand daily use
- A 5-year warranty means quality assured for years of use.
Technical specification
Model
PPB 623e
Item Number: 1010017687
GTIN/UPC: 840886114862
Metrology
Capacity
- 620g
- 620g
Readability
- 0.001g
- 0.001g
Standard Deviation <5% capacity (g)
- 0.0007g
- 0.0007g
USP Minimum Weight (K=2, U=0.10%) (g)
- 1.382g
- 1.382g
USP Optimised Minimum Weight (USP, K=2, U=0,10%, SRP≤0,41d) (g)
- 0.820g
- 0.820g
Minimum weight (K=2, U=1%) (g)
- 0.138g
- 0.138g
General Specifications
Pan Size
- 120mm ø
- 120mm ø
Weighing Units
- ct, custom unit, dr, dwt, g, GN, mg, mm, N, oz, ozt, T, ti, tl.H, tl.S, tl.T
- ct, custom unit, dr, dwt, g, GN, mg, mm, N, oz, ozt, T, ti, tl.H, tl.S, tl.T
Stabilisation Time
- 3
- 3
Interface
- RS-232/USB/Ethernet RJ45
- RS-232/USB/Ethernet RJ45
Calibration
- External calibration
- External calibration
Display
- Backlit LCD Graphical with 26mm high digits
- Backlit LCD Graphical with 26mm high digits
Power
Number of batteries
- 1
- 1
Power Supply
- 18VDC 830mA adapter
- 18VDC 830mA adapter
Operating Conditions
Operating Temperature
- 15° to 35°C
- 15° to 35°C
Product Information
Construction
- ABS plastic
- ABS plastic
Net Weight
- 6.4kg
- 6.4kg
Dimensions
Draft Shield Type
- Chamber
- Chamber
Overall Dimensions
- 235x398x331mm
- 235x398x331mm
Downloads
Accessories
Here is a list of our available related products and suitable accessories:| Product Image | Product Name | Item Number | Link |
|---|---|---|---|
 | AdamDU Data Collection Program-600002028 | 600002028 | View |
 | ATP 2 Thermal Printer-1120015779 | 1120015779 | View |
