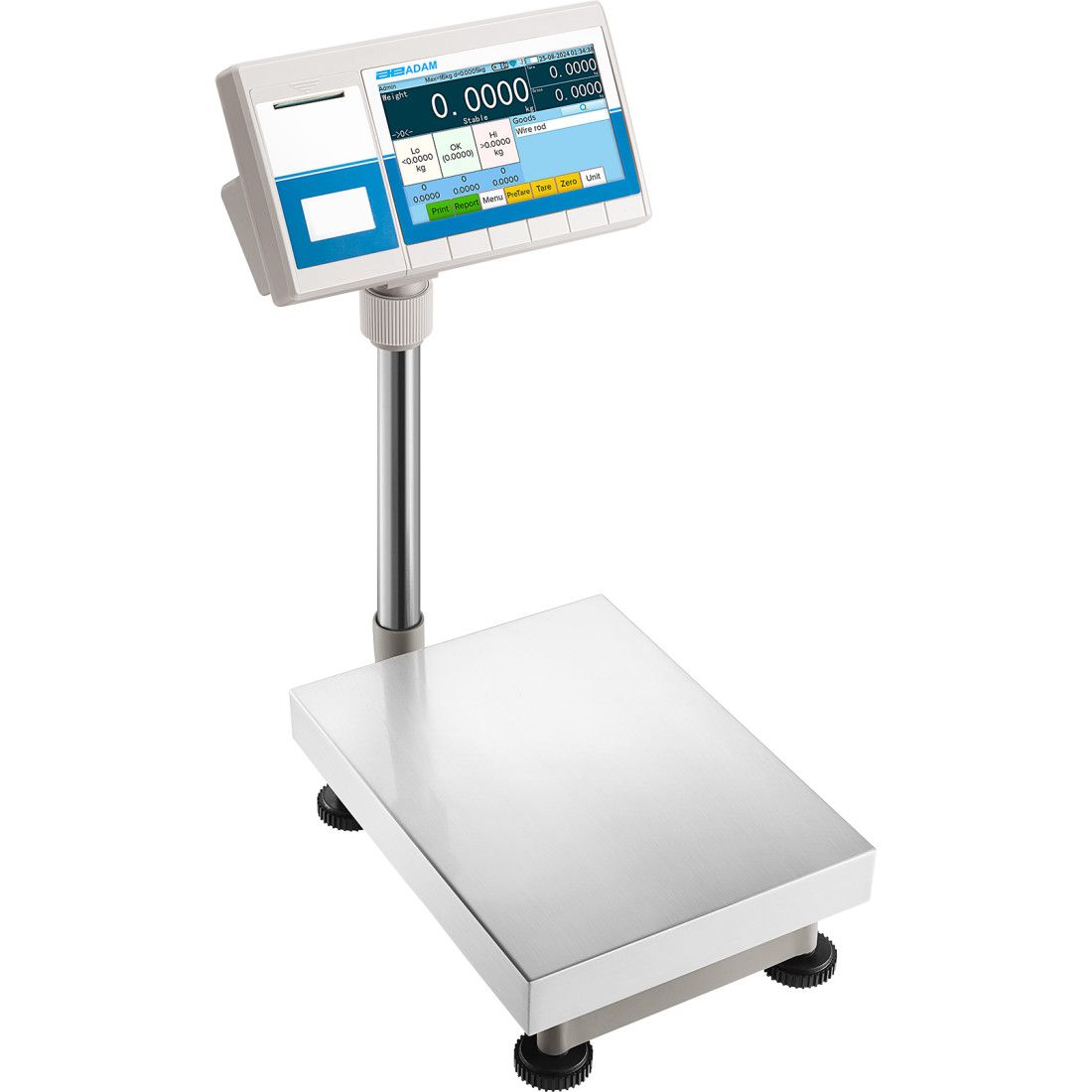

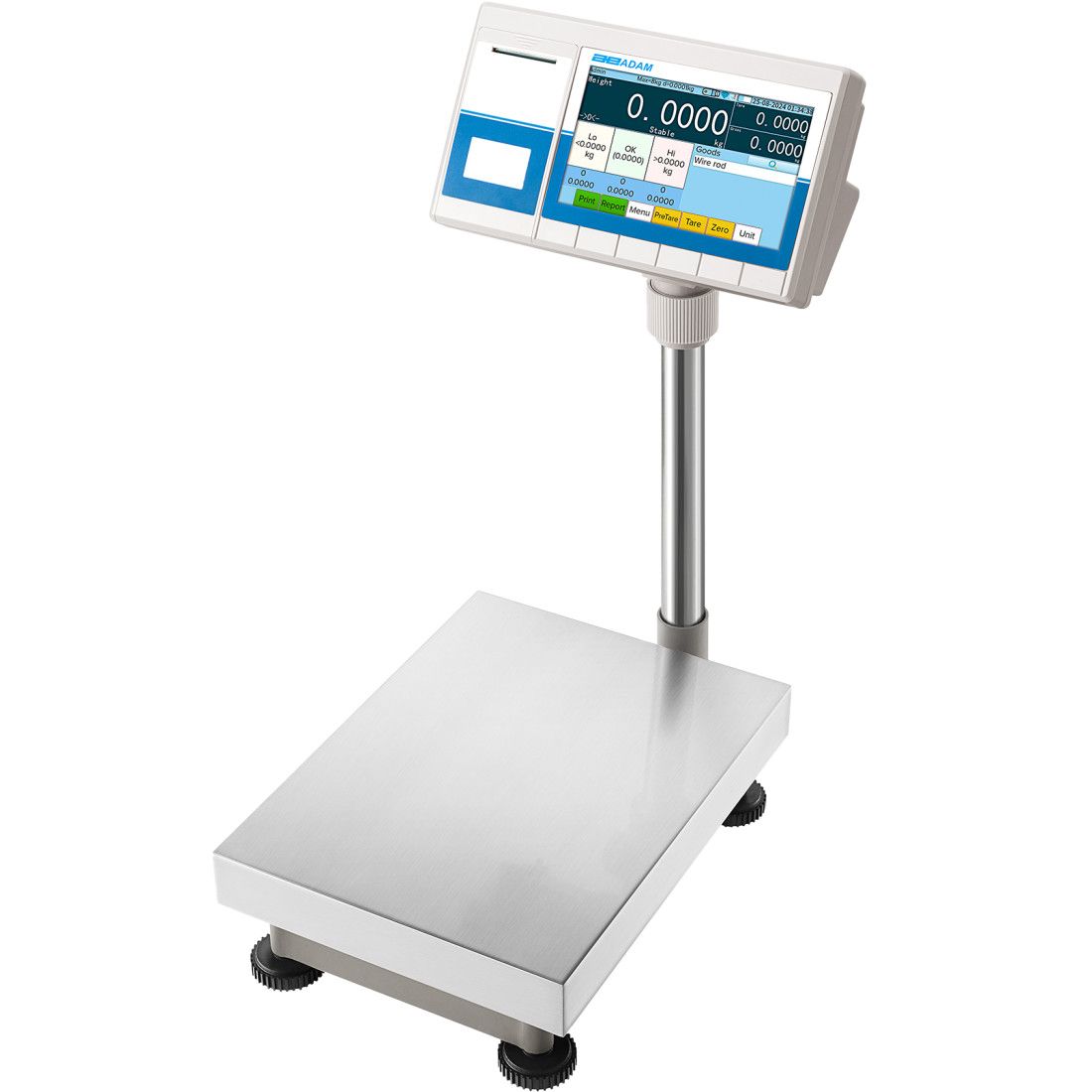

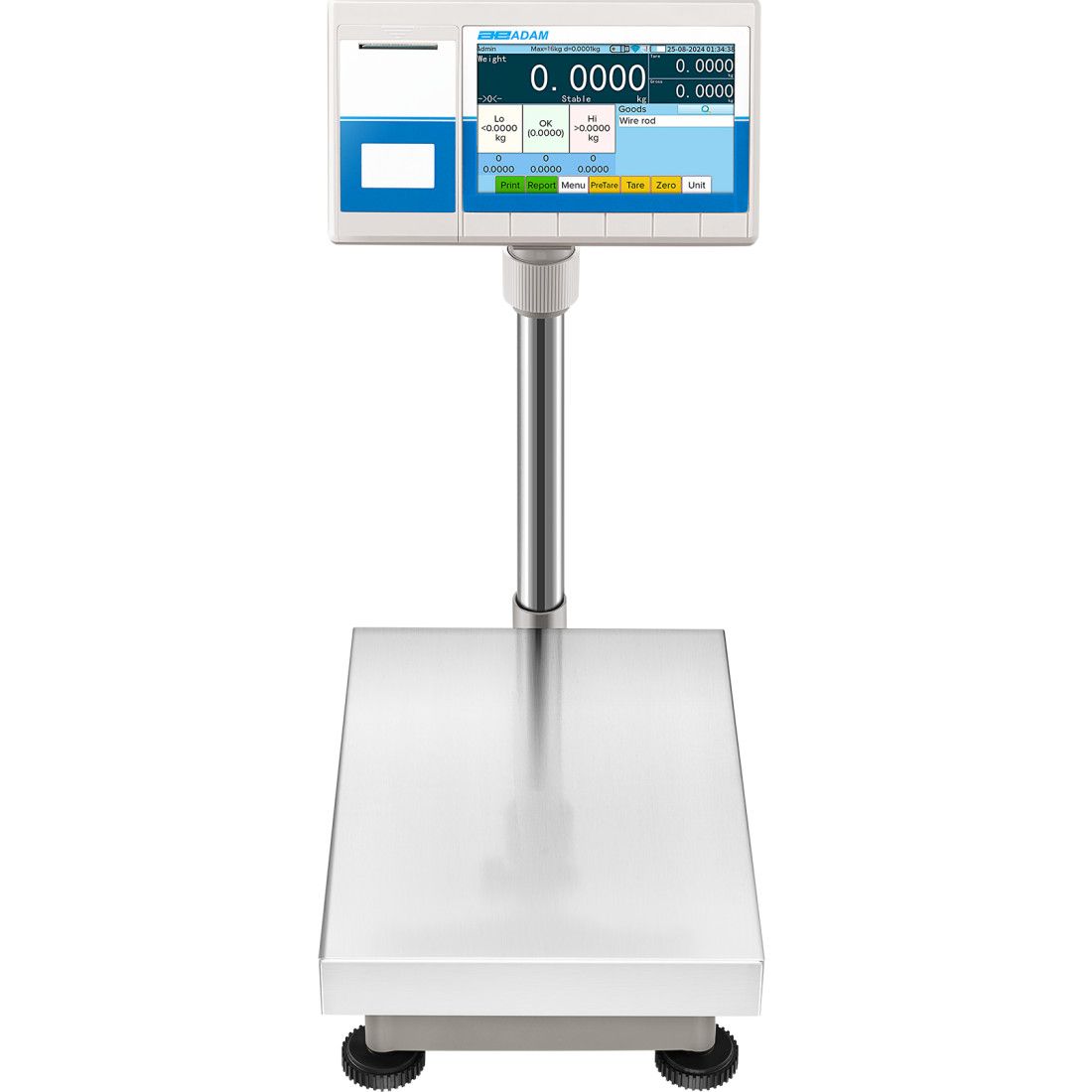

BTT Touch-Screen Label Printing Scales-BTT 16
With an 8" touchscreen display, BTT offers an intuitive, user-friendly interface, the convenience of a built-in printer and easy connectivity via RS-232, USB and optional ethernet, Wi-FI and wireless. Labels can be fully customised (including weight data, QR codes, bar codes and logos) in varying lengths. BTT can store up to 10 label designs for fast recall. Includes a port to connect an optional bar code scanner.
Applications
-
-
-
-
-
-
-
Features
-
-
-
-
-
-
-
-
-
-
-
Sturdy and durable, BTT touch-screen label printing scales are ideal for manufacturing, shipping and receiving, packing and distribution warehouses. The BTT has a built-in printer that can print weight, QR codes, bar codes and labels in numerous languages. Software is included for personalised label design and formatting on computers. BTT scales consist of a sturdy ABS plastic indicator, mild steel base, and easy-to-clean stainless steel platform. The indicator can be placed on a bench or attached to the included pillar. The BTT offer two platform sizes to accommodate large or small objects. RS-232, USB and optional Wi-Fi, RJ45 and wireless interfaces provide speedy connection to computers and printers.
Features and Benefits
- Checkweighing with audible alarm
- Colour-coded keys facilitate quick recognition of the most frequently used buttons
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Large, grade 304 stainless steel pan allows easy cleaning
- Rugged construction stands up to industrial use
- Sealed keypad protects against dirt and spills
- Overload protection helps prevent damage to internal components
- Built-in printer can print weight, QR codes, bar codes and customized labels in numerous languages
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
- Memory accumulation totals results
- Parts counting optimisation automatically refines piece weight as parts are added
- Selectable digital filtering helps minimise effects of vibration and disturbances
- Zero-tracking feature ensures display returns to zero reading
- 1:600,000 internal counting resolution
- USB and RS-232 interfaces provide speedy communication with computers and printers
- Product look up (PLU) memory locations store a range of items for recall
- Selectable language for printing
- Parts counting with freely selectable sample sizes
- Wall-mount bracket for placing indicator on vertical surface
- Adam Connect compatible for wireless data transfer to printers and PCs
- A 3-year warranty means quality assured for years of use.
Technical specification
Model
BTT 16
UPC: 840886112103
Metrology
Capacity
- 16kg
- 16kg
Readability
- 0.5g
- 0.5g
Repeatability
- 1g
- 1g
Linearity
- 1g
- 1g
General Specifications
Pan Size
- 400x300mm
- 400x300mm
Weighing Units
- ct, dr, g, kg, lb, lb:oz, mm, oz, T, tl.T
- ct, dr, g, kg, lb, lb:oz, mm, oz, T, tl.T
Stabilisation Time
- 2
- 2
Interface
- RS-232/USB/Optional Ethernet RJ45/Optional Wi-Fi/Optional Bluetooth
- RS-232/USB/Optional Ethernet RJ45/Optional Wi-Fi/Optional Bluetooth
Calibration
- External calibration
- External calibration
Display
- Touchscreen with mm high digits
- Touchscreen with mm high digits
PLU Memories
- 1006
- 1006
Power
Power Supply
- 12VDC 3A adapter / Internal rechargeable battery
- 12VDC 3A adapter / Internal rechargeable battery
Battery Type
- Lead Acid
- Lead Acid
Number of batteries
- 1
- 1
Maximum Battery Life (in hours)
- 110
- 110
MSDS Sheet
Operating Conditions
Operating Temperature
- 0° to 40°C / 32° to 104°F
- 0° to 40°C / 32° to 104°F
Product Information
Construction
- ABS plastic indicator with die-cast aluminum base
- ABS plastic indicator with die-cast aluminum base
Net Weight
- 8.5kg
- 8.5kg
Dimensions
Overall Dimensions
- 300x510x680mm
- 300x510x680mm
