GBK-S & GFK-S Bench and Floor Scales-GBK-S 8
Durable GBK-S bench checkweighing scales and GFK-S floor checkweighing scales with large, clear displays, simple operation for straightforward weighing, and a choice of capacities and base sizes.
Applications
-
-
-
-
-
-
Features
-
-
-
-
-
-
-
For simple, straightforward weighing in demanding industrial environments, choose GBK-S and GFK-S bench and floor checkweighing scales. 5-key operation makes general weighing tasks easy, with weight readings appearing clearly in 40mm-high digits on the large, bright display. For checkweighing tasks, the backlight changes colour to denote whether the the sample is under (amber), over (red) or within (green) preset limits. Weighing results can be exported via the RS-232 port to a PC or printer.
Features and Benefits
- Colour-changing backlight in checkweighing mode to show if under, over or within acceptable limits
- Large, 40mm-high easy to read digits on a bright background
- Simple, 5-key operation allows for easy set up and use
- Solid ABS housing (Indicator) is durable for industrial use
- Large, grade 304 stainless steel pan allows easy cleaning
- RS-232 interface provides speedy connection to computers and printers

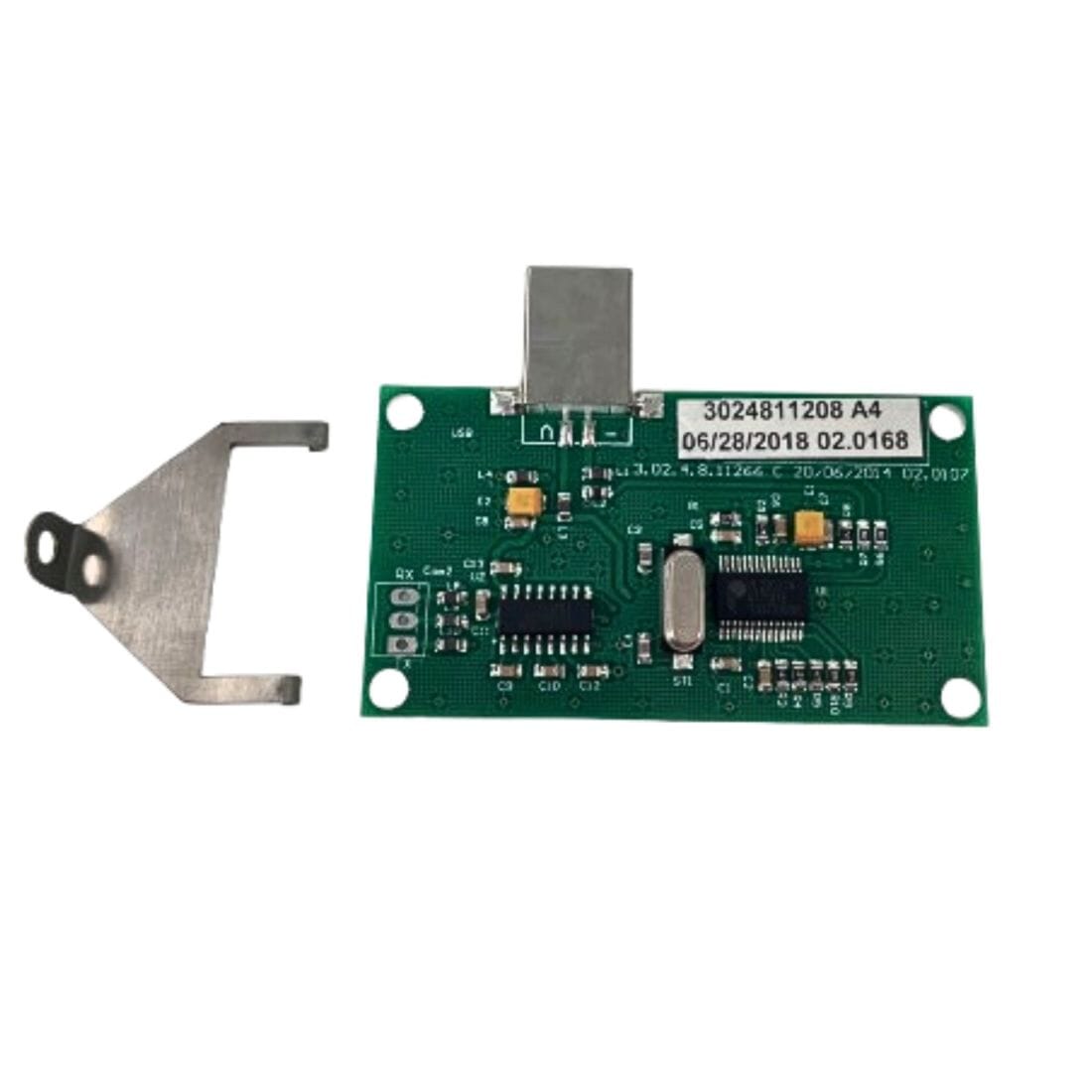

- Optional USB interface simplifies data communication
- Selectable language for printing
- 1:1,600,000 Internal counting resolution for precise results
- Auto power-off to save energy
- Hold function freezes the displayed weight, allowing time to elapse without losing the result
- External calibration allows for verification and adjustment with weights
- Capacity tracker built into display for easily monitoring possible overloads
- Adam Connect compatible for wireless data transfer to printers and PCs
- A 5-year warranty means quality assured for years of use.
Technical specification
Model
GBK-S 8
UPC: 840886110970
Metrology
Capacity
- 8kg
- 8kg
Readability
- 0.1g
- 0.1g
Repeatability
- 0.2g
- 0.2g
Linearity
- 0.3g
- 0.3g
General Specifications
Pan Size
- 300x400mm
- 300x400mm
Weighing Units
- g, kg, lb, lb:oz, oz
- g, kg, lb, lb:oz, oz
Stabilisation Time
- 2
- 2
Interface
- Optional USB, RS-232
- Optional USB, RS-232
Calibration
- External calibration
- External calibration
Display
- Backlit LCD with capacity tracker with 40mm high digits
- Backlit LCD with capacity tracker with 40mm high digits
Power
Power Supply
- AC adapter / Optional 6V dc 4.5aH
- AC adapter / Optional 6V dc 4.5aH
MSDS Sheet
Operating Conditions
Operating Temperature
- -10° to 40°C / 14° to 104°F
- -10° to 40°C / 14° to 104°F
Product Information
Construction
- ABS plastic indicator with die-cast aluminum base
- ABS plastic indicator with die-cast aluminum base
Dimensions
Overall Dimensions
- 300x510x680mm
- 300x510x680mm
Downloads
Accessories
Here is a list of our available related products and suitable accessories:
